Geometric modeling

Spatial and geometric modeling library. More...

Data Structures
struct	point
	Representation of an ordered pair with a shade. More...
struct	shape
	Representation of a shape. More...
struct	circle
	Representation of a circle. More...

Functions
void	shape_destroy_point (point *p)
void	shape_destroy_circle (circle *cir)
point *	shape_create_point (ushort, ushort, shade_t)
point *	shape_duplicate_point (point *p)
shape *	shape_create (ushort,...)
shape *	shape_duplicate_shape (shape *)
void	shape_destroy_shape (shape *)
circle *	shape_create_circle (ushort, point *)
shape *	shape_create_triangle (point *, point *, point *)
shape *	shape_create_quad (point *, uchar, uchar)

Detailed Description

Spatial and geometric modeling library.

Graphics framework for describing 2D systems.

Author

Hershal Bhave

Eric Crosson

Version

0.1

Date

2014

Note

Destroy whatever you create.

Copyright

GNU Public License.

Function Documentation

shape* shape_create	(	ushort	,
			...
	)

Return a pointer to a shape with numPoints points.

Parameters

numpoints	Number of vertices in this polygon
points...	Comma separated point-defined polygon

Returns

point* Pointer to the described polygon

Note

va_args requires a preceeding argument (size va_args).

Definition at line 31 of file shape.c.

References shape::num_points, and shape::points.

Referenced by CHToShape(), shape_create_quad(), and shape_create_triangle().

                                            {

  unsigned char i;
  shape* sh = (shape*) calloc(1, sizeof(shape));
  point** pts = (point**) calloc(num_points, sizeof(point*));
  va_list args;

  va_start(args, num_points);
  for(i=0; i < num_points; ++i) {
    pts[i] = va_arg(args, point*);
  }
  va_end(args);         /* clean up the list */

  sh->num_points = num_points;
  sh->points = pts;
  return sh;
}

Here is the caller graph for this function:

circle* shape_create_circle	(	ushort	,
		point *
	)

Return a pointer to a circle in memory described by center and radius.

Parameters

center	Point describing the center of the circle
radius	Length of the radius in units

Returns

shape* to newly described circle

Definition at line 58 of file shape.c.

References circle::center, and circle::radius.

                                                          {

    circle* cir = (circle*) calloc(1, sizeof(circle));
    cir->center = center;
    cir->radius = radius;
    return cir;
}

point* shape_create_point	(	ushort	,
		ushort	,
		shade_t
	)

Return a point that describes the given arguments.

Parameters

x	x coordinate
y	y coordinate
shade	shading of this point

Returns

point* The newly created point

Definition at line 6 of file shape.c.

References point::shade, point::x, and point::y.

Referenced by _FBDrawGraphBounds(), _FBDrawGraphData(), FBDrawFullscreenGraph(), FBEraseFullscreenGraph(), FBEraseFullscreenGraphData(), shape_create_quad(), and shape_duplicate_point().

                                                             {
    point* p = malloc(sizeof(point));
    p->x = x;
    p->y = y;
    p->shade = shade;
    return p;
}

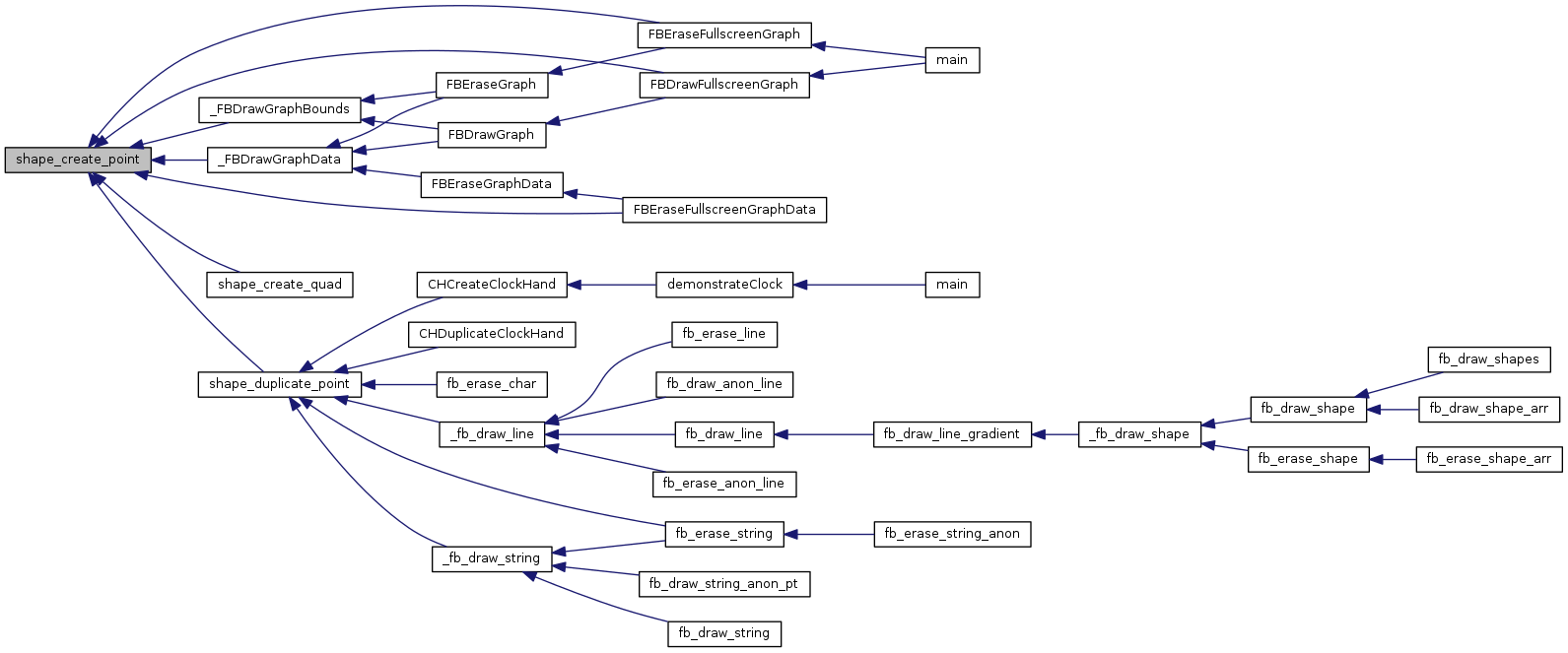

Here is the caller graph for this function:

shape* shape_create_quad	(	point *	,
		uchar	,
		uchar
	)

A handy function to create a general quadrilateral.

Parameters

top_left_corner	Coordinates of the top left corner of the quadrilateral
width	Width of the quadrilateral
p2	height Height of the quadrilateral

Returns

shape* to newly described quadrilateral

Definition at line 19 of file shape.c.

References point::shade, shade_t, shape_create(), shape_create_point(), point::x, and point::y.

                                                                            {

    ushort x = top_left_corner->x;
    ushort y = top_left_corner->y;
    shade_t shade = top_left_corner->shade;
    return shape_create(4,
            top_left_corner,
            shape_create_point(x+width, y,        shade),
            shape_create_point(x+width, y+height, shade),
            shape_create_point(x,       y+height, shade));
}

Here is the call graph for this function:

shape* shape_create_triangle	(	point *	,
		point *	,
		point *
	)

A handy function to create a triangle.

Parameters

p0	Vertex a
p1	Vertex b
p2	Vertex c

Returns

shape* to newly described triangle

Definition at line 14 of file shape.c.

References shape_create().

                                                              {

  return shape_create(3, p0, p1, p2);
}

Here is the call graph for this function:

void shape_destroy_circle ( circle *  cir )

inline

Destroys a circle described by center and radius.

Parameters

cir	Circle to destroy

Definition at line 57 of file shape.h.

                                              {

    free(cir);
}

void shape_destroy_point ( point *  p )

inline

Destroys a point described by x and y coordinates.

Parameters

p	Point to destroy

Definition at line 48 of file shape.h.

                                          {

    free(p);
}

void shape_destroy_shape

(

shape *

)

Destroy a shape object.

Parameters

sh	Shape object to destroy

Returns

void

Definition at line 49 of file shape.c.

References shape::num_points, and shape::points.

                                    {

  ushort i;
  for(i=0; i<sh->num_points; ++i) {
    free(sh->points[i]);
  }
  free(sh->points);
}

point* shape_duplicate_point ( point *  p )

inline

Duplicate a point

Parameters

p	Point to duplicate

Returns

point* Duplicated point

Warning

Don't forget to destroy each duplicated (created) point.

Definition at line 77 of file shape.h.

References point::shade, shape_create_point(), point::x, and point::y.

Referenced by _fb_draw_line(), _fb_draw_string(), CHCreateClockHand(), CHDuplicateClockHand(), fb_erase_char(), and fb_erase_string().

                                              {

    return shape_create_point(p->x, p->y, p->shade);
}

Here is the call graph for this function:

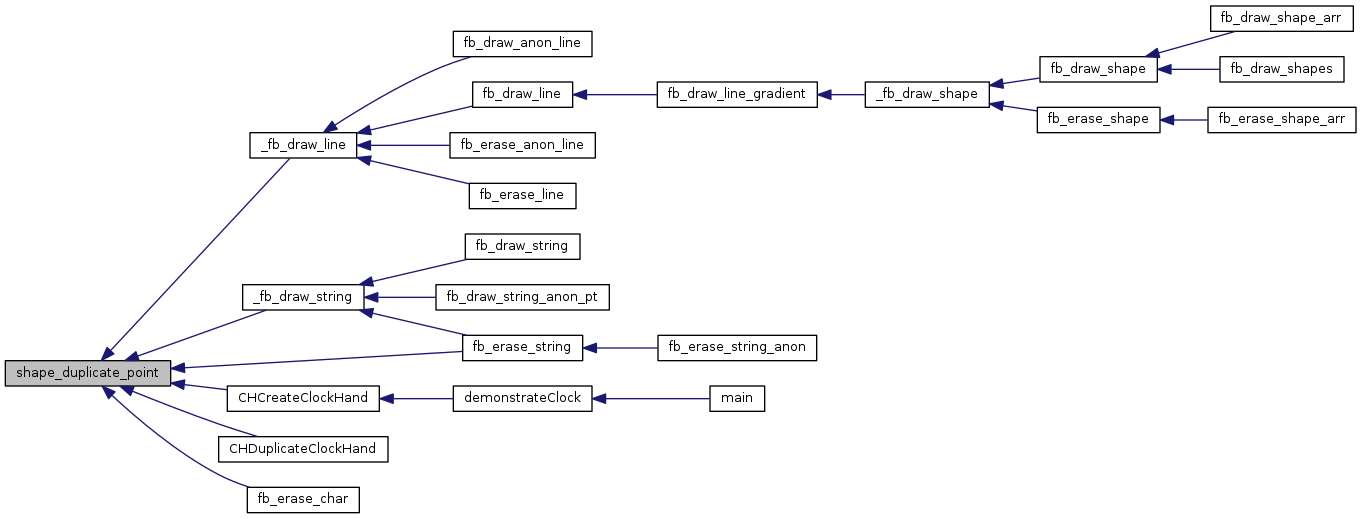

Here is the caller graph for this function:

shape* shape_duplicate_shape

(

shape *

)

Duplicate a shape object.

Parameters

shape

The shape to duplicate

Returns

shape A duplicate of the given shape

Definition at line 66 of file shape.c.

References shape::num_points, and shape::points.

Referenced by CHDuplicateClockHand().

                                       {

    ushort i;
    shape* dup = (shape*) calloc(1, sizeof(shape));

    dup->num_points = s->num_points;
    dup->points = (point**) calloc(dup->num_points, sizeof(point*));

    for(i=0; i < dup->num_points; ++i) {
    dup->points[i] = s->points[i];
    }
    return dup;
}

Here is the caller graph for this function:
