Framebuffer manipulation framework

Frame bufer representation in memory. More...

Functions
framebuffer	fb_init (void)
	Create a framebuffer object and return the handle. More...
void	fb_destroy (framebuffer)
	Destroy a framebuffer object. More...
void	fb_erase_string (framebuffer, point *, char *)
	Erase string on fb starting at top_left_corner. More...
void	fb_erase_string_anon (framebuffer fb, point *top_left_corner, char *string)
	Erase string on fb starting at top_left_corner and free top_left_corner. More...
void	fb_erase_char (framebuffer, point *, char)
	Erase char on fb starting at top_left_corner. More...
void	fb_erase_char_anon (framebuffer fb, point *top_left_corner, char c)
	Call and free . More...
private void	_fb_draw_string (framebuffer, point *, char *)
	For internal use only. More...
void	fb_draw_string (framebuffer fb, point *top_left_corner, char *string)
	Draw string on fb starting at top_left_corner. More...
void	fb_draw_string_anon_pt (framebuffer fb, point *top_left_corner, char *string)
	Call fb_draw_string and destroy top_left_corner. More...
private void	_fb_draw_char (framebuffer, point *, char)
	For internal use only. More...
void	fb_draw_shape (framebuffer, shape *)
	Using as a canvas, draw . More...
void	fb_draw_shapes (framebuffer, ushort,...)
void	fb_draw_shape_arr (framebuffer, ushort, shape **)
void	fb_erase_shape_arr (framebuffer, ushort, shape **)
private void	_fb_draw_shape (framebuffer, shape *, shade_t)
	For internal use only. More...
void	fb_erase_shape (framebuffer fb, shape *sh)
	Using as a canvas, draw . More...
void	fb_set_pixel (framebuffer, uchar, uchar, shade_t)
	In fb, set pixel (x,y) to . More...
void	fb_clear_pixel (framebuffer fb, uchar x, uchar y)
	Clear pixel (x,y) in . More...
void	fb_erase_pixel (framebuffer fb, uchar x, uchar y)
	Erase pixel (x,y) in . More...
private void	_fb_draw_line (framebuffer, point *, point *, shade_t)
	The heavy-lifter (pixel-setter) in line-segment-drawing. More...
void	fb_erase_anon_line (framebuffer fb, point *point1, point *point2)
	Erases a line connecting two points before destroys the two points. More...
void	fb_erase_line (framebuffer fb, point *point1, point *point2)
	Remove a line segment on from to . More...
void	fb_draw_anon_line (framebuffer fb, point *point1, point *point2, shade_t shade)
	Draws a line connecting two points before destroying the two points. More...
void	fb_draw_line (framebuffer fb, point *point1, point *point2, shade_t shade)
	Draw a line segment on from to of color .to of color .shade. More...
void	fb_draw_line_gradient (framebuffer fb, point *point1, point *point2, shade_t shade)
	Draw a line segment on from to . More...
void	fb_draw_ellipse (framebuffer, point *, ushort, ushort, shade_t)
	Draw an ellipse in fb at center with specified x- and y-radii of color shade. More...
void	fb_draw_circle (framebuffer fb, circle *c)
	Draw a circle in at with radius of color . More...
private void	_fb_fill_four_ellipse_points (framebuffer, point *, ushort, ushort)
	Fill an ellipse on fb. More...
void	fb_draw_ellipse_fill (framebuffer, point *, ushort, ushort, shade_t)
	Draw on fb a shaded ellipse described by center, x- and y-radii. More...
private void	_fb_plot_four_ellipse_points (framebuffer, point *, ushort, ushort)
	Plot on fb the four symmetric points on an ellipse described by a center and x- and y-offsets. More...
void	fb_console_println_point (point *)
	Print a point (ordered pair) to the console followed by a newline. More...
void	fb_console_print_point (point *)
	Print a point (ordered pair) to the console. More...
void	fb_console_println_coordinate (uchar, uchar, shade_t)
	Print a coordinate (ordered pair) to the console followed by a newline. More...
void	fb_console_print_coordinate (uchar, uchar, shade_t)
	Print a coordinate (ordered pair) to the console. More...

Detailed Description

Frame bufer representation in memory.

Represent and transform one frame's buffer in memory.

Author

Hershal Bhave

Eric Crosson

Version

0.1

Date

2014

Copyright

GNU Public License.

Note

Private functions (beginning with an underscore) are helper functions, not to be accessed outside the scope of this file. The purpose of these functions is to reduce duplicated code.

Bug:

This library is not modal (taking one framebuffer to act upon at a time).

Function Documentation

private void _fb_draw_char	(	framebuffer	,
		point *	,
		char
	)

For internal use only.

Peforms the base work of all framebuffer string drawing requests.

Peforms the base work of all framebuffer string drawing requests.

Parameters

fb	Framebuffer to use as canvas
pen	Coordinate of top left corner of char on fb
c	Character to draw

Returns

void

Definition at line 283 of file framebuffer.c.

References FB_HEIGHT, fb_set_pixel(), FB_WIDTH, font_valvano, FONT_VALVANO_HEIGHT, FONT_VALVANO_WIDTH, point::shade, point::x, and point::y.

Referenced by _fb_draw_string(), and fb_erase_char().

                                                       {

    uchar active, col, row, mask;
    for(col=0; col < FONT_VALVANO_WIDTH; ++col) {
    mask = 0x01;
    if (pen->x+col >= FB_WIDTH) {
        /* We have exceeded the number of pixels on the screen */
#ifndef NDEBUG
        printf("%s pen has gone offscreen. Ignoring rest of character...\n", __FUNCTION__);
#endif
        break;
    }
    for(row=0; row < FONT_VALVANO_HEIGHT; ++row) {
        if (pen->y+row >= FB_HEIGHT) {break;}
        active = mask & font_valvano[c][col];
        fb_set_pixel(fb, pen->x + col, pen->y + row, active ? pen->shade : 0);
        mask = mask << 1;
    }
    }
}

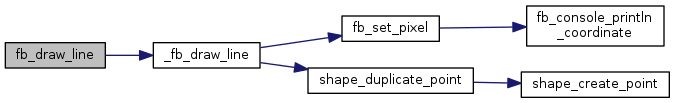

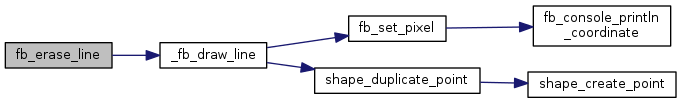

Here is the call graph for this function:

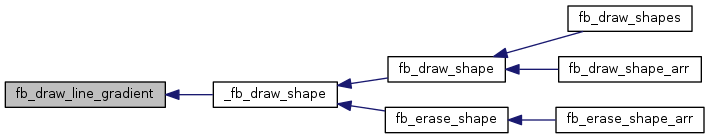

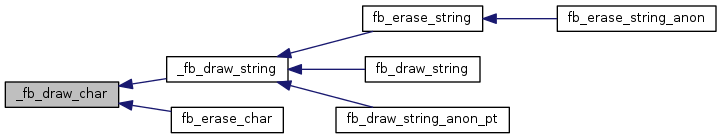

Here is the caller graph for this function:

private void _fb_draw_line	(	framebuffer	,
		point *	,
		point *	,
		shade_t
	)

The heavy-lifter (pixel-setter) in line-segment-drawing.

Parameters

fb	The framebuffer to draw a line on
point1	The first endpoint of the line-segment to draw
point2	The final endpoint of the line-segment to draw
shade	The shade of the line-segment to draw

Returns

void

Definition at line 105 of file framebuffer.c.

References fb_set_pixel(), shape_duplicate_point(), point::x, and point::y.

Referenced by fb_draw_anon_line(), fb_draw_line(), fb_erase_anon_line(), and fb_erase_line().

                                                                                {

    point* a;
    point* b;
    int dx, dy, sx, sy, e2, err;

    a = shape_duplicate_point(point1);
    b = shape_duplicate_point(point2);

    dx = abs(b->x-a->x); sx = (a->x < b->x) ? 1 : -1;
    dy = abs(b->y-a->y); sy = (a->y < b->y) ? 1 : -1;
    err = (dx>dy ? dx : -dy)/2;
    for(;;) {
    fb_set_pixel(fb, a->x, a->y, shade);
    if ((a->x == b->x) && (a->y == b->y)) {break;}
    e2 = err;
    if (e2 >-dx) {err -= dy; a->x += sx;}
    if (e2 < dy) {err += dx; a->y += sy;}
    }
    SHDestroyPoint(a);
    SHDestroyPoint(b);
}

Here is the call graph for this function:

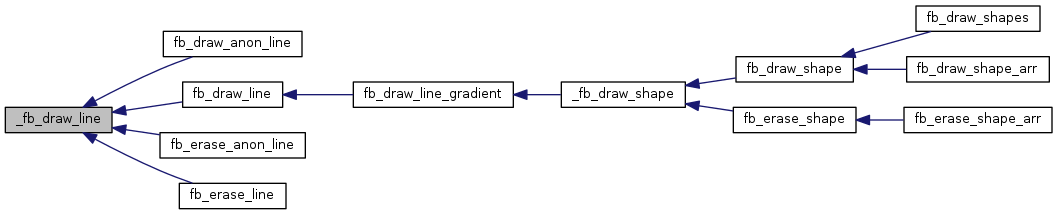

Here is the caller graph for this function:

private void _fb_draw_shape	(	framebuffer	,
		shape *	,
		shade_t
	)

For internal use only.

Helper function that performs the mechanics of drawing a shape.

Helper function that performs the mechanics of drawing a shape. The purpose of this function is to reduce duplicated code in memory.

Parameters

fb	Framebuffer to use as canvas
sh	Shape to draw
shade	Color of shape

Returns

void

Definition at line 39 of file framebuffer.c.

References fb_draw_line_gradient(), shape::num_points, and shape::points.

Referenced by fb_draw_shape(), and fb_erase_shape().

                                                              {

    unsigned short p;
    for(p=0; p < sh->num_points; ++p) {
    /* TODO: determine if the below line is necessary */
    /* fb_set_pixel(fb, sh->points[p]->x, sh->points[p]->y, shade); */
    if (p > 0) {
        fb_draw_line_gradient(fb, sh->points[p-1], sh->points[p], shade);
    }
    }

    /* Enclose the figure */
    if(p>1) {
    fb_draw_line_gradient(fb, sh->points[0], sh->points[p-1], shade);
    }
}

Here is the call graph for this function:

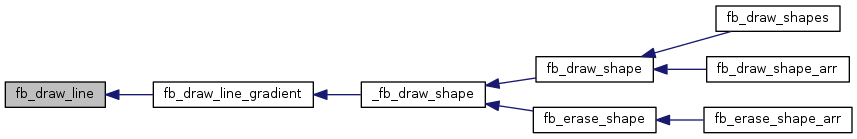

Here is the caller graph for this function:

private void _fb_draw_string	(	framebuffer	,
		point *	,
		char *
	)

For internal use only.

Draw on the starting square against .

Draw a string on the framebuffer starting square against .

Parameters

fb	Framebuffer to use as canvas
top_left_corner	Coordinate of top left corner of string on fb
string	String to draw

Returns

void

Definition at line 269 of file framebuffer.c.

References _fb_draw_char(), FONT_VALVANO_KERNING, FONT_VALVANO_WIDTH, null, shape_duplicate_point(), and point::x.

Referenced by fb_draw_string(), fb_draw_string_anon_pt(), and fb_erase_string().

                                                                           {

    point* pen = shape_duplicate_point(top_left_corner);
    while(*string != null) {
    _fb_draw_char(fb, pen, *(string++));
    pen->x += FONT_VALVANO_WIDTH + FONT_VALVANO_KERNING;
    }
    SHDestroyPoint(pen);
}

Here is the call graph for this function:

Here is the caller graph for this function:

private void _fb_fill_four_ellipse_points	(	framebuffer	,
		point *	,
		ushort	,
		ushort
	)

Fill an ellipse on fb.

Fill an ellipse on fb.

Fill on fb from the four symmetric points on an ellipse described by a center and x- and y-offsets, to the axis of said ellipse.

Parameters

fb	Framebuffer to use as canvas
center	Geometric center of the ellipse
x	X offset of point to plot
y	Y offset of point to plot

Returns

void

Note

Points will be shaded with the value in center->shade.

Definition at line 138 of file framebuffer.c.

References fb_set_pixel(), point::shade, point::x, and point::y.

Referenced by fb_draw_ellipse_fill().

                                                                                     {

    int i;
    for(i = -x; i <= x; ++i) {
    fb_set_pixel(fb, center->x + i, center->y + y, center->shade);
    fb_set_pixel(fb, center->x + i, center->y - y, center->shade);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

private void _fb_plot_four_ellipse_points	(	framebuffer	,
		point *	,
		ushort	,
		ushort
	)

Plot on fb the four symmetric points on an ellipse described by a center and x- and y-offsets.

Plot on fb the four symmetric points on an ellipse.

Parameters

fb	Framebuffer to use as canvas
center	Geometric center of the ellipse
x	X offset of point to plot
y	Y offset of point to plot

Returns

void

Note

Points will be shaded with the value in ->shade.

Definition at line 129 of file framebuffer.c.

References fb_set_pixel(), point::shade, point::x, and point::y.

Referenced by fb_draw_ellipse().

                                                                                     {

    fb_set_pixel(fb, center->x + x, center->y + y, center->shade);
    fb_set_pixel(fb, center->x - x, center->y + y, center->shade);
    fb_set_pixel(fb, center->x - x, center->y - y, center->shade);
    fb_set_pixel(fb, center->x + x, center->y - y, center->shade);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void fb_clear_pixel ( framebuffer  fb, uchar  x, uchar  y  )

inline

Clear pixel (x,y) in .

Clear pixel (x,y) in .

This is an alias for with a shade of zero.

Parameters

fb	Framebuffer to use as canvas
x	X coordinate
y	Y coordinate

Returns

void Error behavior: when pixel (x,y) is not writeable (off screen) this function does nothing.

Definition at line 240 of file framebuffer.h.

References FB_COLOR_ERASE, and fb_set_pixel().

Referenced by fb_erase_pixel().

                                                             {

    fb_set_pixel(fb, x, y, FB_COLOR_ERASE);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void fb_console_print_coordinate	(	uchar	,
		uchar	,
		shade_t
	)

Print a coordinate (ordered pair) to the console.

Print a coordinate (ordered pair) to the console.

Note

This function is only applicable on a computer (not for use on microcontrollers).

This function does not append a newline to the console after printing the ordered pair. To just print the ordered pair WITH a newline call function fb_console_println_coordinate instead.

Parameters

x	X coordinate of the coordinate to print
y	Y coordinate of the coordinate to print
shade	Shade of the coodrinate to print

Returns

void

Definition at line 339 of file framebuffer.c.

                                                                  {

#ifdef __GNUC__
    printf("(%d,%d):%d", x, y, shade);
#ifndef NDEBUG
    printf("%s This function was called in an inappropriate context.", __FUNCTION__);
    printf("Please consult the documentation.\n");
#endif
#endif
}

void fb_console_print_point

(

point *

)

Print a point (ordered pair) to the console.

Print a point (ordered pair) to the console.

Note

This function is only applicable on a computer (not for use on microcontrollers).

This function does not append a newline to the console after printing the ordered pair. To just print the ordered pair WITH a newline call function fb_console_println_point instead.

Parameters

p	Point to printf to the console

Returns

void

Definition at line 316 of file framebuffer.c.

References point::shade, point::x, and point::y.

                                      {

#ifdef __GNUC__
    printf("(%d,%d):%d", p->x, p->y, p->shade);
#ifndef NDEBUG
    printf("%s This function was called in an inappropriate context.\n", __FUNCTION__);
    printf("%s Please consult the documentation.\n", __FUNCTION__);
#endif
#endif
}

void fb_console_println_coordinate	(	uchar	,
		uchar	,
		shade_t
	)

Print a coordinate (ordered pair) to the console followed by a newline.

Print a coordinate (ordered pair) to the console followed by a newline.

Note

This function is only applicable on a computer (not for use on microcontrollers).

This function appends a newline to the console after printing the ordered pair. To just print the ordered pair (sans newline) call function instead.

Parameters

x	X coordinate of the coordinate to print
y	Y coordinate of the coordinate to print
shade	Shade of the coodrinate to print

Returns

void

Definition at line 327 of file framebuffer.c.

Referenced by fb_set_pixel().

                                                                    {

#ifdef __GNUC__
    printf("(%d,%d):%d\n", x, y, shade);
#ifndef NDEBUG
    printf("%s This function was called in an inappropriate context.", __FUNCTION__);
    printf("Please consult the documentation.\n");
#endif
#endif
}

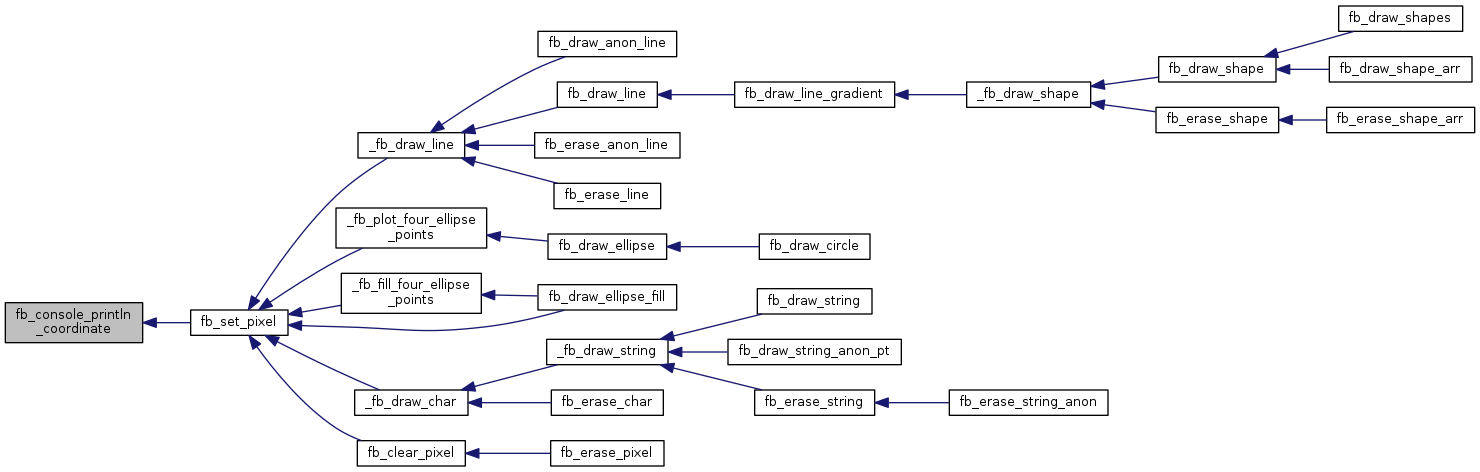

Here is the caller graph for this function:

void fb_console_println_point

(

point *

)

Print a point (ordered pair) to the console followed by a newline.

Print a point (ordered pair) to the console followed by a newline.

Note

This function is only applicable on a computer (not for use on microcontrollers).

This function appends a newline to the console after printing the ordered pair. To just print the ordered pair (sans newline) call function instead.

Parameters

p	Point to printf to the console

Returns

void

Definition at line 304 of file framebuffer.c.

References point::shade, point::x, and point::y.

                                        {

#ifdef __GNUC__
    printf("(%d,%d):%d\n", p->x, p->y, p->shade);
#else
#ifndef NDEBUG
    printf("%s This function was called in an inappropriate context.\n", __FUNCTION__);
    printf("%s Please consult the documentation.\n", __FUNCTION__);
#endif
#endif
}

void fb_destroy

(

framebuffer

)

Destroy a framebuffer object.

Destroy a framebuffer object.

Parameters

fb	Framebuffer to destroy

Definition at line 22 of file framebuffer.c.

References OLED_WIDTH.

                                {

    unsigned char i;
    for(i = 0; i < OLED_WIDTH; ++i) {
    free(fb[i]);
    }
    free(fb);
}

void fb_draw_anon_line ( framebuffer  fb, point *  point1, point *  point2, shade_t  shade  )

inline

Draws a line connecting two points before destroying the two points.

Draws a line connecting two points before destroying the two points.

Parameters

fb	Framebuffer to use as canvas
point1	One endpoint of the line to draw
point2	The other endpoint of the line to draw
shade	Desired shade of the line on fb

Returns

void

Warning

This function destroys and .

Definition at line 315 of file framebuffer.h.

References _fb_draw_line().

                                                                                    {

    _fb_draw_line(fb, point1, point2, shade);
    SHDestroyPoint(point1);
    SHDestroyPoint(point2);
}

Here is the call graph for this function:

void fb_draw_circle ( framebuffer  fb, circle *  c  )

inline

Draw a circle in at with radius of color .

Draw a circle in at with radius of color .

Parameters

fb	Framebuffer to use as canvas
center	Center of circle to draw
radius	Radius of circle to draw
shade	Shade to draw circle with on fb

Returns

void

Definition at line 377 of file framebuffer.h.

References circle::center, fb_draw_ellipse(), circle::radius, and point::shade.

                                                      {

    fb_draw_ellipse(fb, c->center, c->radius, c->radius, c->center->shade);
}

Here is the call graph for this function:

void fb_draw_ellipse	(	framebuffer	,
		point *	,
		ushort	,
		ushort	,
		shade_t
	)

Draw an ellipse in fb at center with specified x- and y-radii of color shade.

Draw an ellipse in fb at center with x- and y- radii of color shade.

Parameters

fb	Framebuffer to use as canvas
center	Center of ellipse to draw
x_radius	X radius of specified ellipse
y_radius	Y radius of specified ellipse
shade	Shade to draw ellipse with on fb

Returns

void

Definition at line 147 of file framebuffer.c.

References _fb_plot_four_ellipse_points().

Referenced by fb_draw_circle().

                                {

    ushort x, y;
    int xx, yy, xx2, yy2, dx, dy, stop_x, stop_y, error;

    x = x_radius;
    y = 0;

    xx = x_radius * x_radius; // width^2
    yy = y_radius * y_radius; // height^2

    xx2 = xx*2;
    yy2 = yy*2;

    dx = yy * (1 - 2*x_radius);
    dy = xx;

    stop_x = yy*2*x_radius;
    stop_y = 0;

    error = 0;

    while (stop_x > stop_y) {
    _fb_plot_four_ellipse_points(fb, center, x, y);
    ++y;
    stop_y += xx2;
    error += dy;
    dy += xx2;
    if (2*error + dx > 0) {
        --x;
        stop_x -= yy2;
        error += dx;
        dx += yy2;
    }
    }

    /* First set of points is done, now plot the second set */
    x = 0;
    y = y_radius;
    dx = yy;
    dy = xx * (1 - 2*y_radius);
    error = 0;
    stop_x = 0;
    stop_y = xx2*y_radius;

    while (stop_x <= stop_y) {
    _fb_plot_four_ellipse_points(fb, center, x, y);
    x++;
    stop_x += yy2;
    error += dx;
    dx += yy2;
    if (2*error + dy > 0) {
        --y;
        stop_y -= xx2;
        error += dy;
        dy += xx2;
    }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void fb_draw_ellipse_fill	(	framebuffer	,
		point *	,
		ushort	,
		ushort	,
		shade_t
	)

Draw on fb a shaded ellipse described by center, x- and y-radii.

Draw on fb a shaded ellipse described by center, x- and y-radii.

Parameters

fb	Framebuffer to use as canvas
center	Gemoetric center of the ellipse
x_radius	X radius of ellipse to plot
y_radius	Y radius of ellipse to plot
shade	Color to fill ellipse with

OPTIONAL: allow for different specified border color

Definition at line 211 of file framebuffer.c.

References _fb_fill_four_ellipse_points(), fb_set_pixel(), point::shade, point::x, and point::y.

                                 {

    ushort x, y;
    int xx, yy, xx2, yy2, dx, dy, last_y_filled, stop_x, stop_y, error, i;
    xx = x_radius * x_radius; // width^2
    yy = y_radius * y_radius; // height^2

    xx2 = xx*2;
    yy2 = yy*2;

    error = 0;

    // fill the horizontal diameter
    for (i = -x_radius; i <= x_radius; ++i) {
    fb_set_pixel(fb, center->x + i, center->y, center->shade);
    }

    /* First set of points is done, now plot the second set */
    x = 0;
    y = y_radius;
    dx = yy;
    dy = xx * (1 - 2*y_radius);
    stop_x = 0;
    stop_y = xx2*y_radius;

    // OPTIONAL OPTIMIZE: this loop
    last_y_filled = y;
    while (stop_x <= stop_y) {
    if (y != last_y_filled) {
        _fb_fill_four_ellipse_points(fb, center, x, y);
        last_y_filled = y;
    }
    x++;
    stop_x += yy2;
    error += dx;
    dx += yy2;
    if (2*error + dy > 0) {
        --y;
        stop_y -= xx2;
        error += dy;
        dy += xx2;
    }
    }
}

Here is the call graph for this function:

void fb_draw_line ( framebuffer  fb, point *  point1, point *  point2, shade_t  shade  )

inline

Draw a line segment on from to of color .to of color .shade.

Draw a line segment on from to of color .

Parameters

fb	Framebuffer to use as canvas
point1	Beginning of line segment
point2	End of line segment
shade	Color of line segment

Returns

void

Definition at line 333 of file framebuffer.h.

References _fb_draw_line().

Referenced by fb_draw_line_gradient().

                                                                               {

    _fb_draw_line(fb, point1, point2, shade);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void fb_draw_line_gradient ( framebuffer  fb, point *  point1, point *  point2, shade_t  shade  )

inline

Draw a line segment on from to .

Draw a line segment on from to .

Parameters

fb	Framebuffer to use as canvas
point1	Beginning of line segment
point2	End of line segment

Returns

void

Bug:

This function is not implemented yet (pass-through).

Definition at line 347 of file framebuffer.h.

References fb_draw_line().

Referenced by _fb_draw_shape().

                                     {

    fb_draw_line(fb, point1, point2, shade);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void fb_draw_shape	(	framebuffer	,
		shape *
	)

Using as a canvas, draw .

Using as a canvas, draw .

Parameters

fb	Framebuffer to use as canvas
sh	Shape to draw

Returns

void This function can also draw points and lines, i.e. a shape with only one or two points respectively.

Definition at line 31 of file framebuffer.c.

References _fb_draw_shape(), null, shape::points, and point::shade.

Referenced by fb_draw_shape_arr(), and fb_draw_shapes().

                                              {

    if (sh->points[0] != null) {
    _fb_draw_shape(fb, sh, sh->points[0]->shade);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void fb_draw_shape_arr	(	framebuffer	,
		ushort	,
		shape **
	)

Method to draw an array of shapes on . Method to draw an array of shapes on .

Parameters

fb	Framebuffer to use as canvas
numShapes	Number of shapes to draw
shape_arr	Array of shapes to draw

Returns

void

Definition at line 68 of file framebuffer.c.

References fb_draw_shape().

                                                                            {

    unsigned char i;
    for(i=0; i < numShapes; ++i) {
    fb_draw_shape(fb, shape_arr[i]);
    }
}

Here is the call graph for this function:

void fb_draw_shapes	(	framebuffer	,
		ushort	,
			...
	)

Method to draw multiple shapes on . Method to draw multiple shapes on . Provide the number of shapes to draw for va_args.

Parameters

fb	Framebuffer to use as canvas
numShapes	Number of shapes to draw

Returns

void

Definition at line 56 of file framebuffer.c.

References fb_draw_shape().

                                                           {

    unsigned char i;
    va_list args;

    va_start(args, numShapes);
    for(i=0; i < numShapes; ++i) {
    fb_draw_shape(fb, va_arg(args, shape*));
    }
    va_end(args);                 /* clean up the list */
}

Here is the call graph for this function:

void fb_draw_string ( framebuffer  fb, point *  top_left_corner, char *  string  )

inline

Draw string on fb starting at top_left_corner.

Draw string on starting at .

Parameters

fb	Framebuffer to use as canvas
top_left_corner	Coordinate of top left corner of string on fb
string	Character array to draw

Returns

void

Definition at line 115 of file framebuffer.h.

References _fb_draw_string().

                                                                          {

    _fb_draw_string(fb, top_left_corner, string);
}

Here is the call graph for this function:

void fb_draw_string_anon_pt ( framebuffer  fb, point *  top_left_corner, char *  string  )

inline

Call fb_draw_string and destroy top_left_corner.

Call and destroy .

Parameters

fb	Framebuffer to use as canvas
top_left_corner	Coordinate of top left corner of string on fb. Will be destroyed.
string	Character array to draw

Returns

void

Definition at line 130 of file framebuffer.h.

References _fb_draw_string().

                                                                                  {

    _fb_draw_string(fb, top_left_corner, string);
    free(top_left_corner);
}

Here is the call graph for this function:

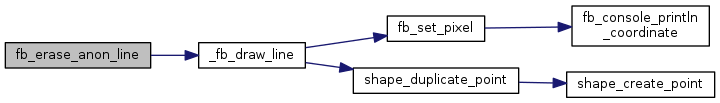

void fb_erase_anon_line ( framebuffer  fb, point *  point1, point *  point2  )

inline

Erases a line connecting two points before destroys the two points.

Erases a line connecting two points before destroys the two points.

Parameters

fb	Framebuffer to use as canvas
point1	One endpoint of the line to draw
point2	The other endpoint of the line to draw
shade	Desired shade of the line on fb

Returns

void

Warning

This function destroys and .

Definition at line 283 of file framebuffer.h.

References _fb_draw_line(), and FB_COLOR_ERASE.

                                                                      {

    _fb_draw_line(fb, point1, point2, FB_COLOR_ERASE);
    SHDestroyPoint(point1);
    SHDestroyPoint(point2);
}

Here is the call graph for this function:

void fb_erase_char	(	framebuffer	,
		point *	,
		char
	)

Erase char on fb starting at top_left_corner.

Erase char on starting at .

Parameters

fb	Framebuffer to use as canvas
top_left_corner	Coordinate of top left corner on char on fb
c	Char to erase from fb

Returns

void In order to erase a char successfully the fonts, char and coordinates must be identical. This will clear the values of the affected pixels; it is a destructive action and will not 'undo' changes to the canvas.

Definition at line 96 of file framebuffer.c.

References _fb_draw_char(), FB_COLOR_ERASE, point::shade, and shape_duplicate_point().

                                                                   {

    point* pen = shape_duplicate_point(top_left_corner);
    pen->shade = FB_COLOR_ERASE;
    _fb_draw_char(fb, pen, c);
    SHDestroyPoint(pen);
}

Here is the call graph for this function:

void fb_erase_char_anon ( framebuffer  fb, point *  top_left_corner, char  c  )

inline

Call and free .

Call and free .

Parameters

fb	Framebuffer to use as canvas
top_left_corner	Coordinate of on char on . Will be destroyed.
c	Char to erase from

Returns

void In order to erase a char successfully the fonts, char and coordinates must be identical. This will clear the values of the affected pixels; it is a destructive action and will not 'undo' changes to the canvas.

Definition at line 89 of file framebuffer.h.

                                                                        {

    fb_erase_char_anon(fb, top_left_corner, c);
    free(top_left_corner);
}

void fb_erase_line ( framebuffer  fb, point *  point1, point *  point2  )

inline

Remove a line segment on from to .

Remove a line segment on from to .

Parameters

fb	Framebuffer to use as canvas
a	Beginning of line segment
b	End of line segment

Returns

void

Definition at line 299 of file framebuffer.h.

References _fb_draw_line(), and FB_COLOR_ERASE.

                                                                 {

    _fb_draw_line(fb, point1, point2, FB_COLOR_ERASE);
}

Here is the call graph for this function:

void fb_erase_pixel ( framebuffer  fb, uchar  x, uchar  y  )

inline

Erase pixel (x,y) in .

Erase pixel (x,y) in .

This is an alias for with a shade of zero.

Parameters

fb	Framebuffer to use as canvas
x	X coordinate
y	Y coordinate

Returns

void Error behavior: when pixel (x,y) is not writeable (off screen) this function does nothing.

Definition at line 256 of file framebuffer.h.

References fb_clear_pixel().

                                                             {

    fb_clear_pixel(fb, x, y);
}

Here is the call graph for this function:

void fb_erase_shape ( framebuffer  fb, shape *  sh  )

inline

Using as a canvas, draw .

Using as a canvas, draw .

Parameters

fb	Framebuffer to use as canvas
sh	Shape to draw

Returns

void

Note

This function can also draw points and lines, i.e. a shape with only one or two points respectively.

Definition at line 211 of file framebuffer.h.

References _fb_draw_shape(), and FB_COLOR_ERASE.

Referenced by fb_erase_shape_arr().

                                                      {

    _fb_draw_shape(fb, sh, FB_COLOR_ERASE);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void fb_erase_shape_arr	(	framebuffer	,
		ushort	,
		shape **
	)

Method to erase an array of shapes from . Method to erase an array of shapes from .

Parameters

fb	Framebuffer to use as canvas
numShapes	Number of shapes to erase
shape_arr	Array containing shapes to erase

Returns

void

Definition at line 76 of file framebuffer.c.

References fb_erase_shape().

                                                                             {

    unsigned char i;
    for(i=0; i < numShapes; ++i) {
    fb_erase_shape(fb, shape_arr[i]);
    }
}

Here is the call graph for this function:

void fb_erase_string	(	framebuffer	,
		point *	,
		char *
	)

Erase string on fb starting at top_left_corner.

Erase on starting at .

Parameters

fb	Framebuffer to use as canvas
top_left_corner	Coordinate of top left corner of string on fb
string	String to erase from fb

Returns

void In order to erase a string successfully the fonts, char arrays and coordinates must be identical. This will clear the values of the affected pixels; it is a destructive action and will not 'undo' changes to the canvas.

Definition at line 260 of file framebuffer.c.

References _fb_draw_string(), FB_COLOR_ERASE, point::shade, and shape_duplicate_point().

Referenced by fb_erase_string_anon().

                                                                           {

    point* pt = shape_duplicate_point(top_left_corner);
    pt->shade = FB_COLOR_ERASE;
    _fb_draw_string(fb, pt, string);
    SHDestroyPoint(pt);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void fb_erase_string_anon ( framebuffer  fb, point *  top_left_corner, char *  string  )

inline

Erase string on fb starting at top_left_corner and free top_left_corner.

Call and free .

Parameters

fb	Framebuffer to use as canvas
top_left_corner	Coordinate of top left corner of string on fb
string	String to erase from fb

Returns

void In order to erase a string successfully the fonts, char arrays and coordinates must be identical. This will clear the values of the affected pixels; it is a destructive action and will not 'undo' changes to the canvas.

Definition at line 55 of file framebuffer.h.

References fb_erase_string().

                                                                                {

    fb_erase_string(fb, top_left_corner, string);
    free(top_left_corner);
}

Here is the call graph for this function:

framebuffer fb_init

(

void

)

Create a framebuffer object and return the handle.

Create a framebuffer object and return the handle.

Returns

framebuffer Newly malloc'd framebuffer

Definition at line 11 of file framebuffer.c.

References OLED_HEIGHT, and OLED_WIDTH.

                      {

    /* OPTIONAL OPTIMIZE: bit-strap this struct to reduce memory consumption */
    unsigned char i;
    unsigned char** fb = (unsigned char**) calloc(OLED_WIDTH, sizeof(unsigned char*));
    for(i = 0; i < OLED_WIDTH; ++i) {
    fb[i] = (unsigned char*) calloc(OLED_HEIGHT, sizeof(unsigned char));
    }
    return (framebuffer) fb;
}

void fb_set_pixel	(	framebuffer	,
		uchar	,
		uchar	,
		shade_t
	)

In fb, set pixel (x,y) to .

In , set pixel (x,y) to .

Parameters

fb	Framebuffer to use as canvas
x	X coordinate
y	Y coordinate
shade	Shade to set pixel

Returns

void Error behavior: when pixel (x,y) is not writeable (off screen) this function does nothing.

Definition at line 84 of file framebuffer.c.

References fb_console_println_coordinate(), FB_HEIGHT, and FB_WIDTH.

Referenced by _fb_draw_char(), _fb_draw_line(), _fb_fill_four_ellipse_points(), _fb_plot_four_ellipse_points(), fb_clear_pixel(), and fb_draw_ellipse_fill().

                                                                   {

    if (x < FB_WIDTH && y < FB_HEIGHT) {
    fb[x][y] = shade;
    } else {
#ifndef NDEBUG
    printf("%sPixel off screen: ", __FUNCTION__);
    fb_console_println_coordinate(x, y, shade);
#endif
    }
}

Here is the call graph for this function:

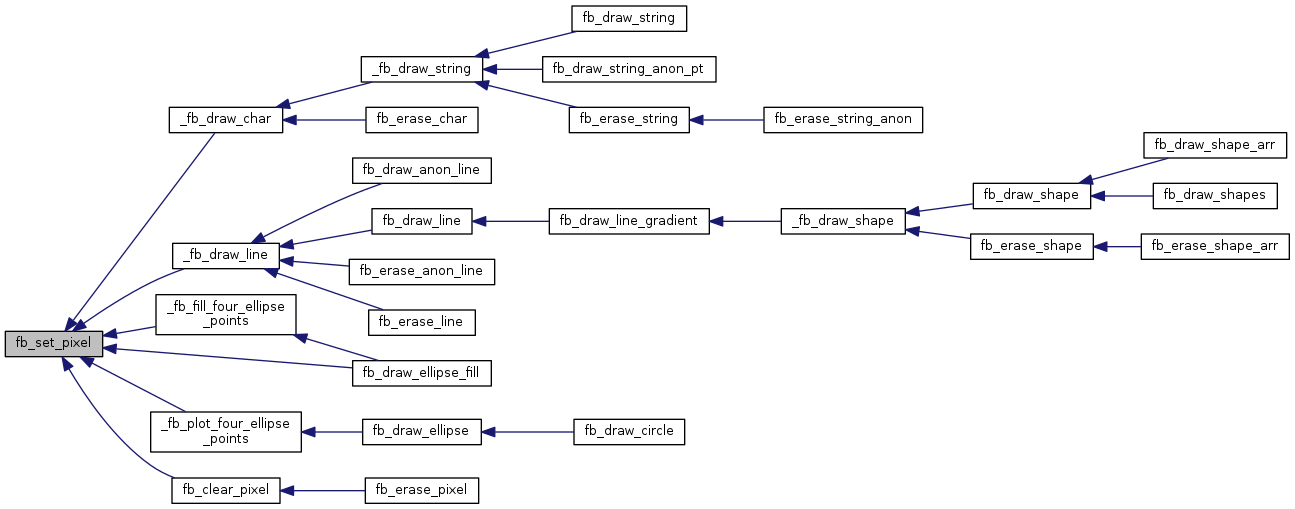

Here is the caller graph for this function:
